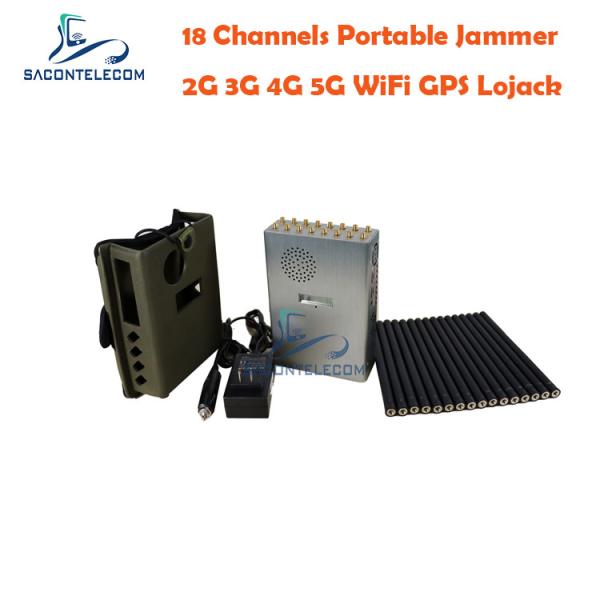

18 Antennas 315 433 868 Cell Phone Signal Jammer 4G 5G GPS Blocker 20m Range
Portable jammer SA-PJ18.pdf
Descriptions:
Sacontelecom is the professional manufacturer of mobile phone signal jammers.
This is the latest designed with 18 Antennas Full Bands 130Mhz-6GHz for mobile phone GSM 3G 4GLTE signal which bring us a strong jamming ability. And it can not only cut off all 3G 4G mobile phone signals, but also jam Wi-Fi2.4G/5GHz GPS LOJACK, RF 315 MHz 433MHz , VHF UHF Walkie-Talkie & Wireless Headset/Microphone signals. all-in-one jammer is power full to blocks all the signals, Jamming frequencies the jamming radius up to 25 meters.
This cellphone blocker SA-PJ18, it has 18pcs omni antennas. Each power is 1 watt, total 18 watts high power. This 5G signal jammer is with LED
display. It is widely sold in all over the countries, such as America, Europe, South America, Mexico, Africa and etc. This car jammer can charge with car charger directly.
Advantages:
Full bands 18 chancel design, Customized for special frequency band
High output power, Total up to: 42W , jamming up to 40m (Still depends on the strength signal in given area)
External Omni-directional antennas all the TX frequency covered down link only
With Car storage battery Charger DC12V can be used in car
Built-in good cooling system inside, Working non-stopped
Can adjust or turn off any single band without influencing the other bands operation
Specifications:
Europe Type
| Key technical specifications: SA-PJ18-EU |
| Channel | Output port | Frequency range | Average out-putting power |
| CH 1 | UHF&CDMA450 | 400-470MHz | 30±1dBm/ 1±0.2W |
| CH 2 | GPSL1 | 1570-1610MHz | 30±1dBm/ 1±0.2W |
| CH 3 | 5G3500 | 3400-3600MHz | 30±1dBm/ 1±0.2W |
| CH 4 | 4G2300 | 2300-2400MHZ | 30±1dBm/ 1±0.2W |
| CH 5 | WIFI5.2G | 5100-5500MHz | 30±1dBm/ 1±0.2W |
| CH 6 | GPSL2L5 | 1170-1280MHz | 30±1dBm/ 1±0.2W |
| CH 7 | 5G1400 | 1427-1518MHz | 30±1dBm/ 1±0.2W |
| CH 8 | 4G2600 | 2570-2690MHZ | 30±1dBm/ 1±0.2W |
| CH 9 | VHF/LOJACK | 135-175MHz | 30±1dBm/ 1±0.2W |
| CH 10 | WIFI2.4G | 2400-2500MHz | 30±1dBm/ 1±0.2W |
| CH 11 | RC315 | 315MHz | 30±1dBm/ 1±0.2W |
| CH12 / CH13 | 3G2100 | 2110-2170MHz | 30±1dBm/ 1±0.2W |
| 4G800 | 758-826MHz | 30±1dBm/ 1±0.2W |
| CH 14 | RC433 | 433MHz | 30±1dBm/ 1±0.2W |
| CH 15/ CH 16 | DCS1800 | 1805-1880MHz | 30±1dBm/ 1±0.2W |
| GSM900 | 925-960MHz | 30±1dBm/ 1±0.2W |
| CH 17 | 5G3700 | 3600-3900MHz | 30±1dBm/ 1±0.2W |
| CH 18 | WIFI5.8G | 5500-5900MHz | 30±1dBm/ 1±0.2W |
| Power supply: adapter 50 to 60Hz AC (110-240V AC/12V DC) Car Charger: DC12V IN |
| Dimensions: (length ,width, height) 190x126x46mm (without antenna) Length of antenna :195mm Gain:2.0dbi |
| Packing size: 330*250*80mm Net weight: 1.6kg Gross weight: 2.5kg |
Total power: 18W
Shielding radius: (2-25) meters at -75dBm Still depends on the strength signal in given area
Built-in battery:7.4V/12000mAh Continue working: around 2.5 hours |
| Warranty: one year from delivery date |
